Buildings

The Buildings data category provides information about all types of buildings with selected filters.

Overview

Buildings

To get started:

  1. Go to the Main or Data tab.
  2. Select the Buildings data category.
  3. In the Geofilter settings dialog, select up to 50 territories for which the data sample is created. You can use standard and custom territories, and also build proximity zones and circles on the map. For more information, see the Geofilters section. After you select the territories, click Done.
  4. On the Filters tab, set the remaining filters if necessary.

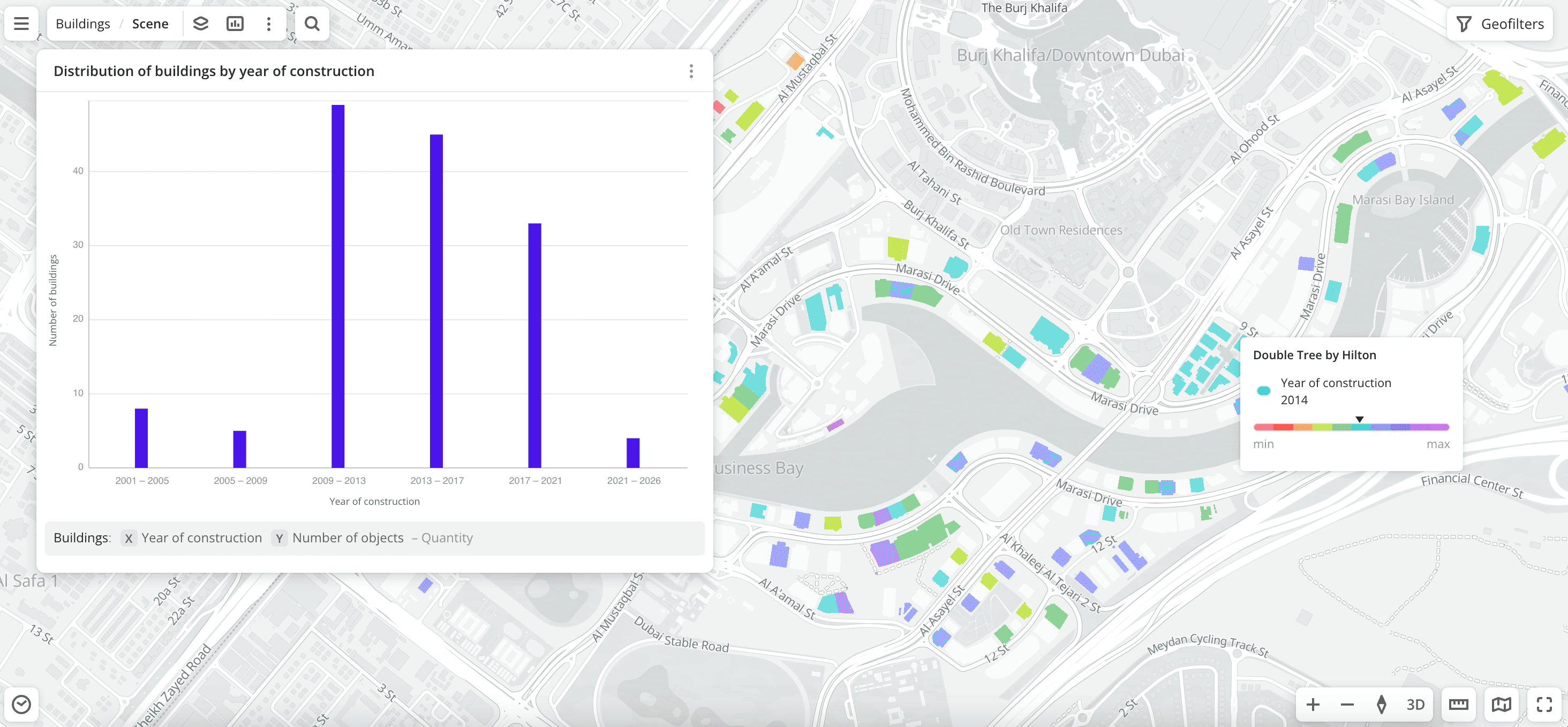

The data is visualized on the map as centroid points: the centers of the object geometries. Filtering results are available in two variants:

  • Statistics: general statistics about the data sample. Include:

    • Total count of buildings.
    • Chart with the distribution of buildings by type.
    • Total and average area in m².
    • Maximum and average count of floors.
    • Maximum and average year of construction.
    • Maximum and average count of firms.

  • Results: general information about buildings and their list. When selecting a building from the list:

    • Information about the building is displayed in the card.
    • The location of the building is indicated on the map.

    You can manually change the list of filtering results to keep only selected buildings in the data sample. Click Edit list, select the required buildings, and click Apply.

To save this data sample and customize its visualization (e.g., as a heatmap), click Create layer.

Filters

For the Buildings category, the following filters are available:

  • Purpose: building type.
  • Status: Constructed, Under construction, or Under Repairing.
  • Number of floors: number of floors in the building. Can take 0 value.
  • Area, m²: area of the building foundation in square meters.
  • Total area, m²: total building area across all floors (excluding technical areas that cannot be used) in square meters.
  • Year of construction: year of construction of the building.
  • Firms count: count of companies registered in the building.
  • Living population: living population in the building.
  • Working population: working population in the building.
  • Floor type: type of installed floors in the building.
  • Cultural heritage site: select to display only buildings that are heritage sites.

To reset the parameter filter, click Cross icon next to the filter name. To reset all parameter filters, click Reset filters at the bottom of the tab.

To hide the filter by territory, in the Geofilter settings dialog, click Eye icon next to the geofilter name. To delete the geofilter, click Cross icon next to its name. To delete all geofilters, click Clear filters.
