Preparation for installation

Before you install any On-Premise product, you need to::

1. Get an On-Premise license.
2. Prepare network infrastructure.
3. Add Helm repository.
4. Fetch installation artifacts.

1. Get an On-Premise license

To access the repository containing installation artifacts, you need an On-Premise license (see Keys and tokens).

1. Fill in the form at urbi.ae.
2. Having received the license key, specify it in DGCLI configuration file.

2. Prepare network infrastructure

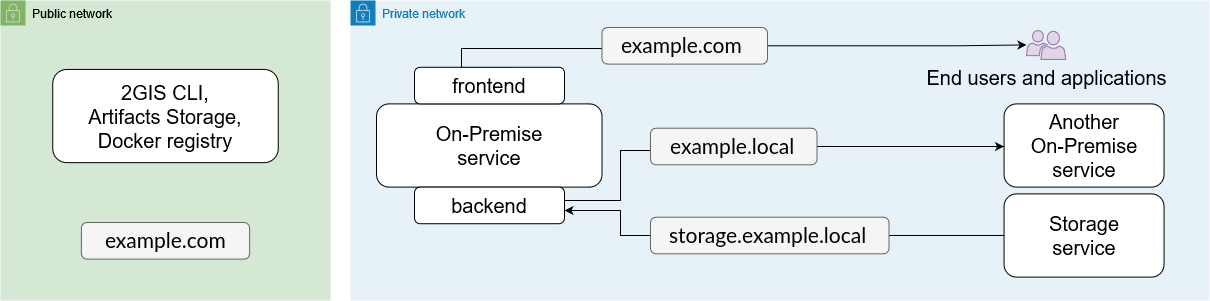

The recommended infrastructure for running On-Premise services includes a public network and a private network. The table below describes an example of such an infrastructure with the example.com and example.local domains. All the components must be deployed in a single Kubernetes cluster managed from the example.com host.

Infrastructure component	Who must have access	Network type	Domains used in the documentation
Artifacts delivery infrastructure	The infrastructure administrator	Public	example.com example-external.com example-internal.com
Docker Registry for storing services' images	DGCLI utility from the example.com host	Public	docker.example.com
Artifacts storage	DGCLI utility from the example.com host	Public	artifacts.example.com
Services' frontends	Applications and end users in the private network	Private	*.example.com
Services' backends	Other services and storages from all pods in the Kubernetes cluster	Private	*.example.local
Data storages	Other services and storages from all pods in the Kubernetes cluster	Private	*.storage.example.local

Note

If you use Managed Kubernetes (Kubernetes as a Service) to deploy the product, make sure that access to the Docker registry is configured using the HTTPS protocol and a certificate signed by a trusted certification authority (for example, Let’s Encrypt).

3. Add Helm repository

A Helm chart from the On-Premise repository is used to install each product. You need to add this repository on the host from which the installation will be run. In the example described above, it is the example.com host.

1. Install the Helm package manager into the cluster. To do so, follow the official installation instructions.

2. Add the repository containing the Helm charts.

   helm repo add 2gis-on-premise https://2gis.github.io/on-premise-helm-charts
   helm repo update

3. Check that Helm and the repository are installed correctly by running:

   helm search repo 2gis-on-premise

   If the command output contains a non-empty list of charts, everything is set up correctly.

4. Fetch installation artifacts

4.1. Configure hosts

Example of On-Premise hosts architecture:

docker.example.com

This host will serve the Docker Registry. The host must be available in the public network, see Preparation for installaion.

To configure the host:

1. Install an operating system.

2. Install Docker Registry.

   The registry must be available at https://docker.example.com:5000/.

3. Configure authentication in the registry by username and password.

   Example:

   • Username: registry
   • Password: DOCKERregistryP@ssW0rd

artifacts.example.com

This host will serve the S3 compatible installation artifacts storage. The host must be available in the public network, see Preparation for installation.

To configure the host:

1. Install an operating system.

2. Install an S3 compatible storage that fits your needs. It is recommended to use Ceph.

   The storage must be available at https://artifacts.example.com:443/.

3. In the installed storage, create the onpremise-artifacts bucket of the needed size.

4. Set a service account with read and write permissions to the bucket.

   Generate a key for this account, which will be be used to access the bucket.

   Example:

   • Access key: AKIAIOSFODNN7EXAMPLE
   • Secret key: wJalrXUtnFEMIK7MDENGbPxRfiCYEXAMPLEKEY

example.com

This host will serve the DGCLI utility. The host must be available in the public network, see Preparation for installation.

To configure the host:

1. Install an operating system.

2. Install Docker Engine.

3. Ensure that the previously configured services are available:

   • https://docker.example.com:5000/
   • https://artifacts.example.com:443/

After that, you can download the installation artifacts using one host.

If a single host cannot provide simultaneous access to the public network, Docker registry, and S3-compatible storage, configure two hosts:

• example-external.com with access to the public network;
• example-internal.com with access to https://docker.example.com:5000/ and https://artifacts.example.com:443/.

After that, you can download the installation artifacts using two hosts.

4.2. Download installation artifacts

The process can be launched on one host that has both Docker registry, S3, and internet access, or on two separate hosts with different access settings. Perform the following steps depending on the selected host configuration.

Using one host

1. Log in to example.com via SSH.

2. Create the dgctl-config.yaml configuration file. For a detailed description of the available parameters, see the DGCLI configuration file description.

   dgctl-config.yaml

   key: DEMO-KEY-DGCTL-AAAAAA-BBBBBB
   log-format: json

   storage:
       type: s3

       host: artifacts.example.com:443
       bucket: onpremise-artifacts
       access-key: AKIAIOSFODNN7EXAMPLE
       secret-key: wJalrXUtnFEMIK7MDENGbPxRfiCYEXAMPLEKEY

   docker:
       registry:
           username: registry
           password: DOCKERregistryP@ssW0rd
           server-address: https://docker.example.com:5000
           image-prefix: /

   # For utility version 3
   components:
       core:
           version: 1.1.0
       api-platform:
           version: 1.1.0

3. Download installation artifacts to the file system using the DGCLI utility:

       docker run --rm \
       -v $(pwd)/dgctl-config.yaml:/dgctl-config.yaml \
       -v /var/run/docker.sock:/var/run/docker.sock \
       -v $(pwd)/values:/values \
       --user $(id -u):$(id -g) \
       2gis/dgctl:3 \
       pull --config=/dgctl-config.yaml --apps-to-registry --generate-values

   Fetching artifacts may take a long time. When the process is complete, the command output will include the path to the manifest files for all components. Example: manifests/<component>/1640661259.json.

   If you use the --generate-values flag, the general.yaml file with configuration parameters is generated and stored in the local directory specified in the -v <path>:/values/<component>/ argument (-v $(pwd)/values:/values in the example). If the path is not specified, the file is deleted after running the utility.

   Note

   If you are using DGCLI utility version 2, additionally specify the --version parameter with the required On-Premise software suite version. For details, see DGCLI command-line arguments reference.

Using two hosts with different access options

When using two hosts, you need to download installation artifacts from the update servers and transfer them to an S3 compatible storage. You can use the DGCLI utility (recommended) or another S3 client for this purpose.

1. Connect to the example-external.com host via SSH.

2. Create a COPY_DIR directory to fetch the installation artifacts.

3. Create a dgctl-config.yaml configuration file. For a detailed description of the available parameters, see the DGCLI configuration file description.

   dgctl-config.yaml

   key: DEMO-KEY-DGCTL-AAAAAA-BBBBBB
   log-format: json
   storage:
       type: fs
       directory: /data

   # For utility version 3
   components:
      core:
          version: 1.1.0
      api-platform:
          version: 1.1.0

4. Download installation artifacts to the file system using the DGCLI utility:

    docker run --rm \
        -v $(pwd)/dgctl-config.yaml:/dgctl-config.yaml \
        -v $COPY_DIR:/data
        -v $(pwd)/values:/values \
        --user $(id -u):$(id -g) \
        2gis/dgctl:3 \
        pull --config=/dgctl-config.yaml --generate-values

   Fetching artifacts may take a long time. Once the process is complete, the command output will include the path to the manifest files for all components. Example: manifests/<component>/1640661259.json.

   If you use the --generate-values flag, the general.yaml files with configuration parameters are generated for each component and stored in the local directory specified in the -v <path>:/values/<component>/ argument (-v $(pwd)/values:/values in the example). If the path is not specified, the files are deleted after running the utility.

   Note

   If you are using DGCLI utility version 2, additionally specify the --version parameter with the required On-Premise software suite version. For details, see DGCLI command-line arguments reference.

5. Transfer the COPY_DIR directory from from example-external.com to example-internal.com.

6. Connect to the example-internal.com host via SSH.

7. Create a dgctl-config.yaml configuration file. For a detailed description of the available parameters, see the DGCLI configuration file description.

   dgctl-config.yaml

   key: DEMO-KEY-DGCTL-AAAAAA-BBBBBB
    log-format: json
    storage:
        type: s3
        host: artifacts.storage.local
        bucket: dgctl-store
        access-key: AKIAIOSFODNN7EXAMPLE>
        secret-key: wJalrXUtnFEMIK7MDENGbPxRfiCYEXAMPLEKEY
    docker:
       registry:
           username: registry-user
           password: DOCKERregistryP@ssW0rd
           server-address: http://docker.registry.local:5000
           image-prefix: /

    # For utility version 3
    components:
       core:
           version: 1.1.0
       api-platform:
           version: 1.1.0

8. Transfer the data from the COPY_DIR directory to the Docker registry and storage using the DGCLI utility:

    docker run --rm \
        -v $(pwd)/dgctl-config.yaml:/dgctl-config.yaml \
        -v $COPY_DIR:/dgctl-source \
        -v /var/run/docker.sock:/var/run/docker.sock \
        --user $(id -u):$(id -g) \
        2gis/dgctl:3 \
        restore --config=/dgctl-config.yaml --from-dir=/dgctl-source --apps-to-registry

4.3. Create infrastructure mirrors in the private network

Create mirrors of the following resources in the private network:

Resource	Host in public network	Mirror host in private network
Docker Registry	docker.example.com	docker.storage.example.local
S3 compatible installation artifacts storage	artifacts.example.com	artifacts.storage.example.local

The endpoints for the mirrors in the private network will differ from the endpoints in the public network.

Example:

• Registry mirror endpoint: docker.storage.example.local:5000
• Storage mirror endpoint: artifacts.storage.example.local:443

4.4. Create a Kubernetes secret for accessing Docker Registry

This secret is required so that Helm, which is used for installing On-Premise services, can access the Docker images located in the Registry. Without a secret, any operation involving the Registry will fail.

Example:

kubectl create secret docker-registry onpremise-registry-creds \
    --docker-server=docker.storage.example.local:5000 \
    --docker-username=registry \
    --docker-password=DOCKERregistryP@ssW0rd
