Operations with layers

Operations with layers
  1. Go to the Dashboards tab.
  2. Select the required dashboard.
  3. Click Layers icon.
  4. Select the required layer.

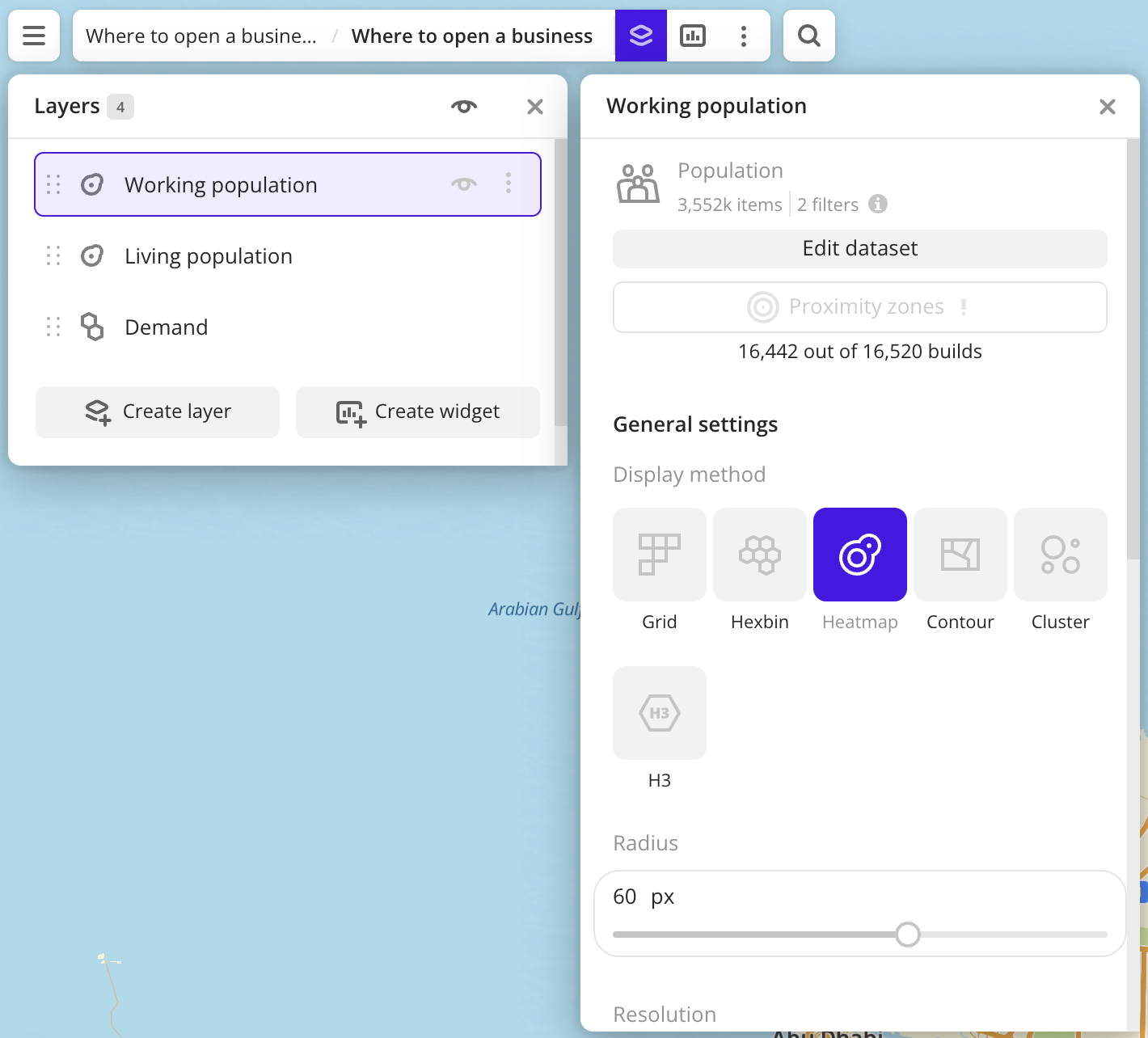

Information about the layer and visualization parameters are displayed.

  1. Go to the Dashboards tab.

  2. Select the required dashboard.

  3. Click Layers icon.

  4. Change the visibility of the layer in one of the following ways:

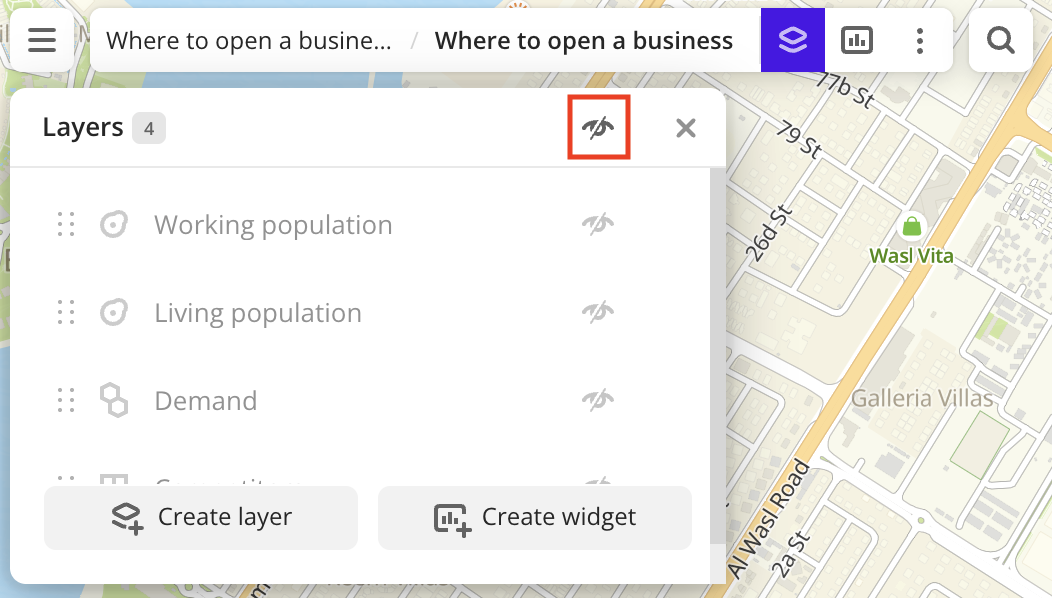

    • Click Show layer icon next to the required layer.
    • Click Layer menu icon next to the required layer and select Show.
  1. Go to the Dashboards tab.

  2. Select the required dashboard.

  3. Click Layers icon.

  4. Change the visibility of the layer in one of the following ways:

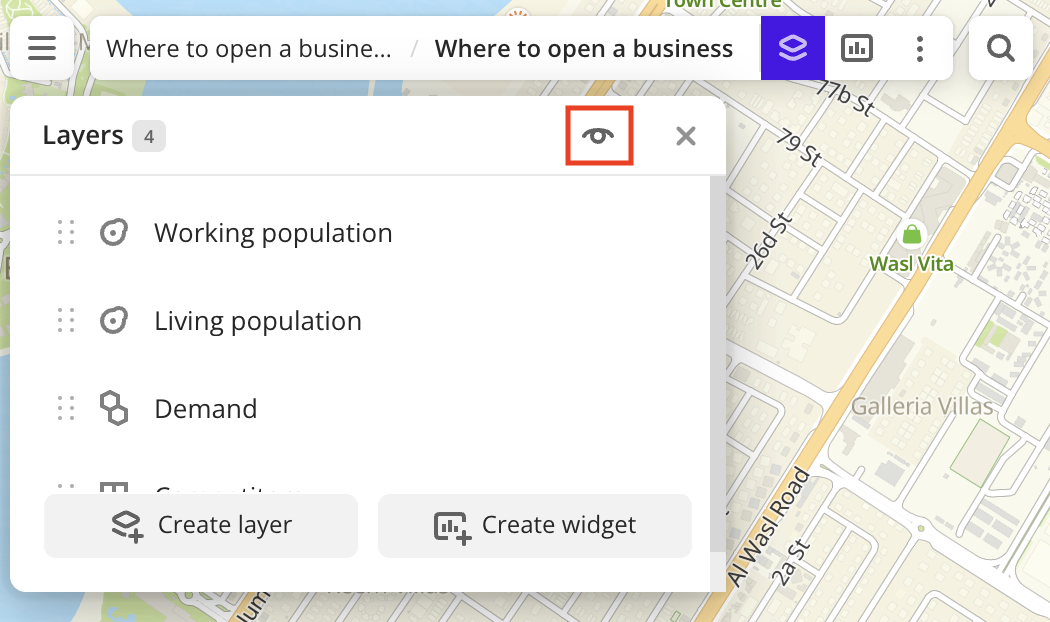

    • Click Hide layer icon next to the required layer.
    • Click Layer menu icon next to the required layer and select Hide.
  1. Go to the Dashboards tab.

  2. Select the required layer.

  3. Click Layers icon.

  4. Rename the layer in one of the following ways:

    • Double-click the required layer.
    • Click Layer menu icon next to the required layer and select Rename.
  5. Enter a new name of the layer and press Enter.

You can customize data visualization for a layer or modify results of data sample.

  1. Go to the Dashboards tab.

  2. Select the required dashboard.

  3. Click Layers icon.

  4. Select the required layer.

  5. Apply necessary changes.

  6. To finish editing, click one of the buttons:

    • Update layer: all changes are saved, and the layer is updated.
    • Create layer: a new layer is created and added to the current dashboard.
    • Back to layer: the changes are not saved, and the current dashboard is opened.
  1. Go to the Dashboards tab.
  2. Select the required dashboard.
  3. Click Layers icon.
  4. Click Layer menu icon next to the required layer and select Duplicate.

A dashboard can consist only one layer with the Buildings visualization method. When a layer of this type is duplicated, a new layer with the Point visualization method is created on this dashboard.

  1. Go to the Dashboards tab.
  2. Select the required dashboard.
  3. Click Layers icon.
  4. Drag the layer to the necessary place in the list.
  1. Go to the Dashboards tab.
  2. Select the required dashboard.
  3. Click Layers icon.
  4. Click Layer menu icon next to the required layer and select Create widget.

See the Creating a new widget instruction for more information.

  1. Go to the Dashboards tab.
  2. Select the required dashboard.
  3. Click Layers icon.
  4. Click Layer menu icon next to the required layer and select Delete.
  5. To confirm deleting, click Delete.
