Column chart

A column chart displays the data values as vertical bars.

Use a column chart to compare the values of a certain data attribute in different groups or ranges.

Case examples:

compare the mean values of number of floors in buildings with different purposes:
compare the number of firms from different categories of food service:

Main features

The X-axis displays groups of data values. As a grouping attribute, you can select:
- Text attributes: for example, firm category, building purpose, and others.
- Numeric attributes: for example, number of reviews, building area, and others. To display data as multiple columns, specify the number of ranges and their limits in the Number of ranges field when creating a widget or editing it. You can set up ranges of different sizes. The specified upper limit is not included in the range.

  If you need to use a continuous scale and automatically set equal ranges of values (set a step size), use a histogram.
The Y-axis displays aggregated values for each group. The column height depends on the value. Aggregation is performed within one group or range. As an aggregation attribute, you can select:
- Number of objects: to count the number of values in a group or range.
- Numeric attributes: to count the total, mean, minimum, or maximum value of this attribute within each group using aggregation functions.
Instead of a column chart, you can use a bar chart: they differ only in the orientation of the axes.

Go to the Dashboards tab.
Select the required dashboard.
Click icon.
Click icon next to the required layer and select Create widget.
Specify the required parameters:
- Layer: data layer that is used to build a graph on the widget.
- Grouping attribute: attribute that is used to group data.
- Aggregation attribute: attribute that is used to aggregate data and calculate the values. If you want to display only the number of values, select Number of objects.
- Aggregation type: function that is used to calculate aggregation attribute values. Aggregation is performed within each group or range of data.
Set the remaining widget parameters if necessary.
Click Create.

Note

When working with the uploaded data, make sure that at least one attribute is specified in it to build a graph on the widget.

Parameter	Description
Widget name	Widget name.
Layer	Data layer that is used to build a graph on the widget.
Description	Text description of the widget. You can format the text: customize headings; make the text bold, italic, or underline the text; add a link; select the text color from the palette or specify it in RGB, HSL, or HEX format.
Change widget type	Click to select another widget type from the list. The configured widget parameters are saved.

Parameter	Description
Grouping attribute	Attribute that is used to group data on the graph. Displayed on the X-axis.
Number of values	For text grouping attributes only. The number of vertical bars that are displayed on the graph: the top 5 or top 10 values from the sample. The top values are calculated based on the aggregation attribute.
Show other	For text grouping attributes only. The last bar on the graph shows the sum of the last value in the top and the remaining values in the sample below this position. The top values are calculated based on the aggregation attribute.
Number of ranges	For numeric grouping attributes only. The number of ranges (columns) that are displayed on the graph. The available number of ranges depends on the data, the maximum number is 10. Ranges are calculated automatically, but you can set them manually by entering the required range limits. The specified upper limit is not included in the range. To add a range, click icon. To delete a range, click icon. To recalculate ranges after configuration, click .

Parameter	Description
Aggregation attribute	Number of objects or a numeric attribute that is used to aggregate data on the graph. Aggregation is performed within each group or range of data. Displayed on the Y-axis.
Aggregation type	Function that is used to calculate aggregation attribute values in each group or range of data: Sum: the sum of the values. Mean: the mean value. Min: the minimum value. Max: the maximum value.

Parameter	Description

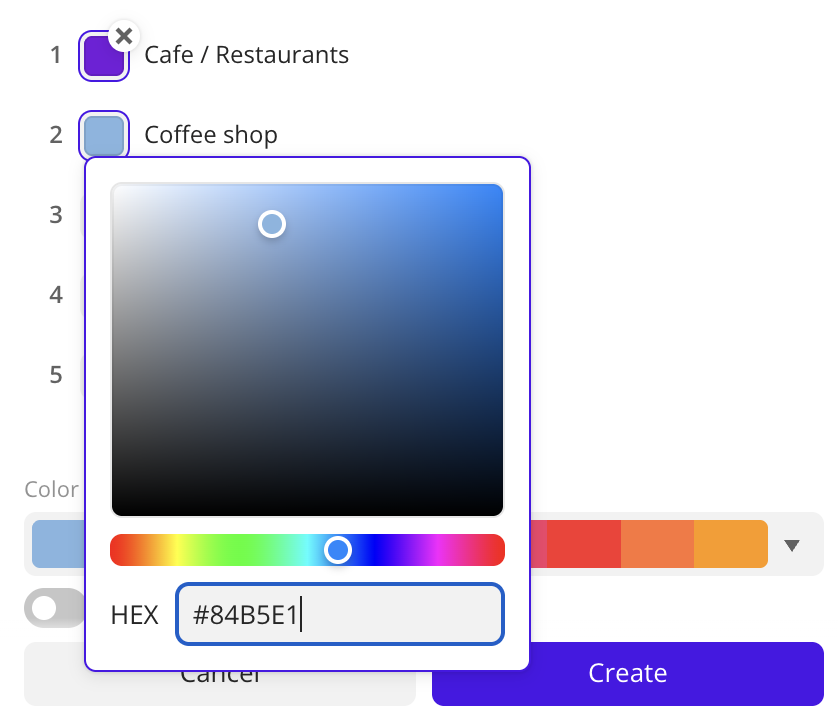

Color	Different color settings are available, depending on the type of grouping attribute (text or numeric): For text grouping attributes: selecting a color scale (a set of prepared color samples) according to which elements on the graph are colored. For numeric grouping attributes: selecting a color according to which elements on the graph are colored. You can select a color from the palette or specify it in HEX format.

Parameter

Description

Color

Different color settings are available, depending on the type of grouping attribute (text or numeric):

For text grouping attributes: selecting a color scale (a set of prepared color samples) according to which elements on the graph are colored.
For numeric grouping attributes: selecting a color according to which elements on the graph are colored. You can select a color from the palette or specify it in HEX format.

Parameter	Description
Show legend	For text grouping attributes only. Shows the values of the grouping attribute and the corresponding values of the aggregation attribute.
Values in percentage	For text grouping attributes only. Shows the values of the aggregation attribute as a percentage.

Parameter	Description
Labels	Labels of attribute values on the X and Y axes.
Axes	Axes on the graph.
Grid	Grid on the graph.

Parameter	Description
Show source	Name of the data layer and the aggregation attribute.
Show empty ranges	For numeric grouping attributes only. Shows on the graph the ranges of values without data.
Total value	The sum of the values of the aggregation attribute in the sample.
Mean value	The mean value of the aggregation attribute in the sample.
Minimum value	The minimum value of the aggregation attribute in the sample.
Maximum value	The maximum value of the aggregation attribute in the sample.
Total objects in the asset	Number of objects in the sample that is used to calculate the values.
